An Experimental Investigation on HPC Using Basalt Rock Fiber

Abstract

The effect of using basalt fibers on the fresh, mechanical and durability properties of concrete was investigated in this study. The study was performed using different basalt fiber volume fractions of 0.5%, 0.7%, 1%, and 1.5 %, with water/cement (w/c) ratios and 0.40 is utilized. The results were compared to conventional concrete with various percentage of basalt fibers volume fractions. The testing for fresh properties included slump and unit weight tests; mechanical properties testing included compressive strength tests, split tensile strength tests, and flexural strength tests, durability testing included rapid chloride penetration test, water permeability, water absorption, SEM and EDS and XRD tests. The test results showed that the use of basalt fibers reduces slump values as the fiber volume fraction increases; however, with the use of the appropriate amount of High Range Water Admixture (HRWA), target slump values can be achieved. Moreover, a considerable improvement in the compressive, tensile, flexural, average residual strength and durability properties was achieved in case of using basalt fibers. On the other hand, corrosion rates increased with the increase in fiber volumes. However, it can be concluded that utilizing a 0.70% fibers volume fraction is the optimum ratio with an overall acceptable performance with respect to mechanical and corrosion properties.

Introduction

I. INTRODUCTION

Concrete is among the most fundamental and important building material as in 21st century, and has been used to construct a variety of high-rise structures, dams and other infrastructures. Concrete which gives strength and also it is durable. Cement, water, fine aggregate and coarse aggregate together make up concrete, which is a heterogeneous composition. The production of concrete has been reached approximately 4.4 billion tones around the world. As the demand of the concrete increase in the construction field gradually the demand of cement and other natural resource also increases. So, this results in a huge production of Portland cement in the manufacturing industries which releases huge amount of co2 to the atmosphere which leads to global warming and climate changes. Approximately 1 ton of co2 is discharged into the environment for every 1 ton production of ordinary Portland cement. Study shown that around 7% of co2 is emitted from cement manufacturing process around worldwide. In the construction field concrete have a great opportunity to replace the cement with alternative materials which is resulting from industrial waste such as silica fumes, GGBS, rice-husk ash, coal ash etc. in order to control the environmental pollution.

In terms of mechanical qualities and durability, high performance concrete (HPC) is superior than regular strength concrete. Reducing the amount of concrete in a structure has advantages, including reducing the need for concrete forms, erection labour, and construction time. Given the benefits that have been established, it is surprising that HPC is not used widely. This is because concrete costs a lot of money and has a big environmental impact per cubic metre. As a result, tremendous care has been taken to develop HPC with lower costs and lower emissions while offering the same features. Contrarily, fibres are frequently utilised in reinforced concrete, namely fibre reinforced concrete, to reduce cracking and lower the permeability of the material. Concrete can be reinforced with a variety of fibre kinds, including glass, steel, synthetic, and natural fibres. Every fibre type has benefits and disadvantages. The basalt fibre is a novel type of material that performs admirably and is "more environmentally friendly," making it a suitable substitute for conventional fibres as a reinforcing component in concrete.

II. LITERATURE REVIEW

From literature study it is found that addition of fibers to the concrete gives adequate strength controls the failures due to alkali silica reaction in concrete and prevents corrosion to some extent. There by enhances the durability. All the literature study gives the idea regarding the utilisation of basalt fiber to get the Properties by using different ratios.

To find the strength and durability of concrete using GGBS, silica fume in addition with basalt fibre is the main concept of this Report and many tests are conducted to find out. Compressive strength test, Flexure strength test, Split Tensile strength and durability test are conducted to know its Strength and aging period. Microstructural analysis is carried to study the components of the materials used. Then we can easily compare the results with any other related topics.

 III. MATERIALS AND METHODS

A. Materials Adopted for Characterisation

Concrete: - Coarse aggregate (20mm & 12.5mm) passing, fine aggregates, Birla super cement OPC (ordinary Portland cement) 53 grade, GGBS, Silica fume, super plasticizer and water.

B. Characterisation of Materials

For current experimental exploration thorough examination of materials have been carried out & noted below.

1. Cement & Cementitious material

Birla super cement of OPC 53 grade validating to IS: 12269-1987 is adopted. As indicated to terms of IS: 4031-1968, firm tests were executed in command to gain the properties of cement OPC 53 grade.

Table 1 OPC 53 Grade Cement Physical Properties used for Experimentation   Table 2 OPC 53 Grade Cement Chemical Properties used for Experimentation

GGBS

By quenching molten iron slag from a blast furnace in water or steam, which results in a glassy, granular product that is subsequently dried and ground into a fine powder, one can create ground-granulated blast-furnace slag (GGBS or GGBFS). GGBS is delivered from the QUALITY POLYTECH dealer on JC Road for building supplies. (Table-3)

Table 3 Physical properties of GGBS                  Table 4 Physical properties of Silica Fume

3. Silica Fume

Silica fume, a by – product of the ferrosilicon industry, is a highly pozzolanic material that is used to enhance mechanical and durability properties of concrete. It may be added direct to concrete as an individual ingredient or in a blend of Portland cement and silica fume. (Table-4)

 4. Coarse Aggregates

Coarse aggregate of 20mm down size were taken. The properties of coarse aggregates namely loose bulk density, el0ngation index, specific gravity, flakiness index. Sieve analysis of the samples i.e., 20mm & 12.5mm are carried out greatest dimensioned coarse aggregates as indicated IS: 2386 (Part I)-1963. (Table-5)

Table 5 Physical Properties of CA                 Table 6 Physical properties of Fine aggregate

 5. Fine Aggregates

The fine aggregate used was M- sand obtained from local source. The specific gravity of sand was 2.54 and fineness modulus of the sand wasS5.16. As per IS 383- 1976, the particle size distribution of sand shows that it is .in zone-II (Table-6)

 6. Basalt Fiber

The material known as basalt fibre is created from the incredibly fine basalt fibres, which are made up of the mineral plagioclase, pyroxene, and olivine. Although it is substantially less expensive than carbon fibre, it is comparable to fibreglass and has better physicomechanical qualities than fibreglass. The aerospace and automotive industries utilise it as a fireproof cloth, and it may also be used as a composite to make items like tripods for cameras. We are employing fibres from chopped basalt for our purpose.

 7. Superplasticizer

The superplasticizer used for the work is CFLOW 154 M1

8. Water

Water which is clean and uncontaminated available in laboratory gratifying the requisite as per IS 4562000 is utilised for concrete in this work.

 C. MIX Proportioning

The mix design was prepared using data obtained from the preliminary investigation. Based on the Indian Standards Recommended Guidelines IS: 10262-2009 the concrete mix has been designed. M-30 mix was considered for the conventional mix design under mild condition with using any chemical admixture and water cement ratio 0.4 is considered in this investigation. Here basalt fibres are used in 0%, 0.5%,0.7%, 1%, and 1.5%. The Mix Proportion is carried out in the further steps.

D. MIX Design

1. M40 Grade Concrete - Specimen Computation
2. Mix Design Parameters for M30 using basalt fibers
3. Designation of Grade = M30
4. Form of Cement = OPC 53 Grade
5. Minimum Cement Content = 370kg/m3
6. Adopted content of cement = 410kg/m3
7. Super plasticizer = CFLOW 154 M1
8. Slump value = 75mm

Specific Gravity

Cement = 3.15

Fine Aggregate = 2.59

Coarse aggregates (20mm & 12.5mm) = 2.63

Water Absorption

Coarse Aggregates = 0.31%

Fine aggregate = 4.5%

Exposure taken into account = Extreme

Placing Method = Dumping

Workability = 75 mm mm

Maximum W/C ratio = 0.40 as designated in IS 456-2000

Adopted W/C ratio 0.40

Mix Proportions For Trial Number 1

Cement = 270 kg/m3

GGBS = 74 kg/m3

Silica fumes = 25.9 kg/m3

Water (Net mixing) = 148 kg/m3

Fine aggregate (SSD) = 772 kg/m3  Coarse aggregate (SSD) = 1205 kg/m3

Chemical admixture = 3.7 kg/m3

 IV. EXPERIMENTAL PROGRAMME ON CONCRETE

The following steps involved in preparing and testing of specimen are:

1. Mixing of concrete
2. Test on Fresh concrete and hardened concrete
3. Durability test on concrete

 A.  Mixing Of Concrete

Concrete grade of M-30 is designed in replacing cement with GGBS and silica fume in percentage with 7% and 20 % and with various percent of basalt fibers. Here weight batching method was used in this investigation. Individual batch quantity was calculated in order to cast cubes, cylinder and beam. Here drum mixer was used for concrete mixing.

B. Tests On Fresh Concrete

Testing on fresh concrete was conducted to evaluate the workability of concrete. Here slump test is conducted; the goal of slump check is to measure concrete’s workability. Slump cone test: The cone utilised here is having a dimension of 300mm in length, 100mm internal diameter at top and 200mm diameter at the bottom of the cone. The nonporous base plate holds the cone.

C. Casting and Compaction Of Concrete Specimen

To carry out the experimental investigation cubical mould of size 150×150×150mm, cylindrical mould of size 300mm length and 150mm internal diameter and beam size 100×100×500mm were casted for evaluation of compression strength, split tensile strength and flexural strength test.

 D. Curing of Specimen

Curing is one of the important steps. In this investigation water curing is carried out in order to prevent water loss in concrete specimen. Firstly, the casted specimen are kept 24 hours in the normal temperature and then the specimen are de moulded after de moulding the samples are placed inside the curing tank under fully submerged condition for various curing period such that 7 and 28 days.

 E. Testing On Hardened Concrete

For controlling and ensuring a high standard of cement concrete activities, hardened concrete test is essential. Hardened concrete testing carried to verify that the concrete used on the project site has reached the requisite strength. All of the examinations were completed in accordance with IS specifications.

The various test conducted under this investigation are:

1. Compression Strength Test
2. Split Tensile Strength Test
3. Flexural Strength Test
4. Water Permeability Test
5. Rapid Chloride Penetration Test
6. Sorptivity Test
7. Water Absorption Test
8. Scanning Electron Microscopy Test

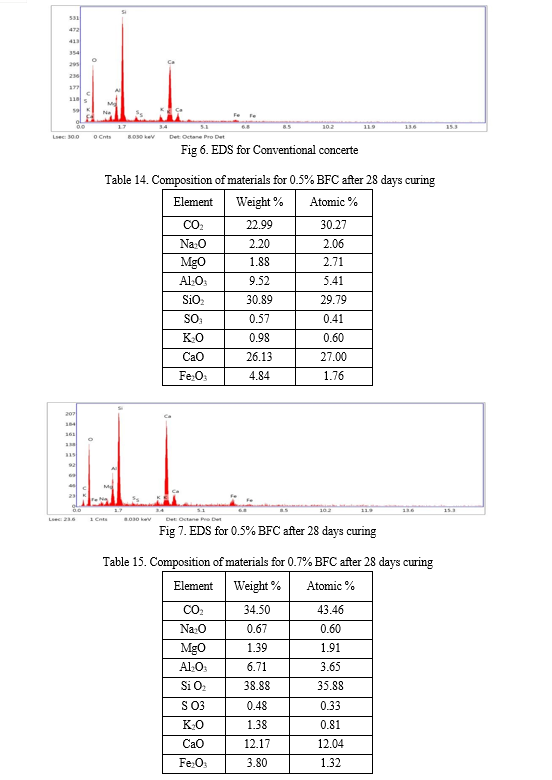

9. Energy Dispersive Spectroscopy Test

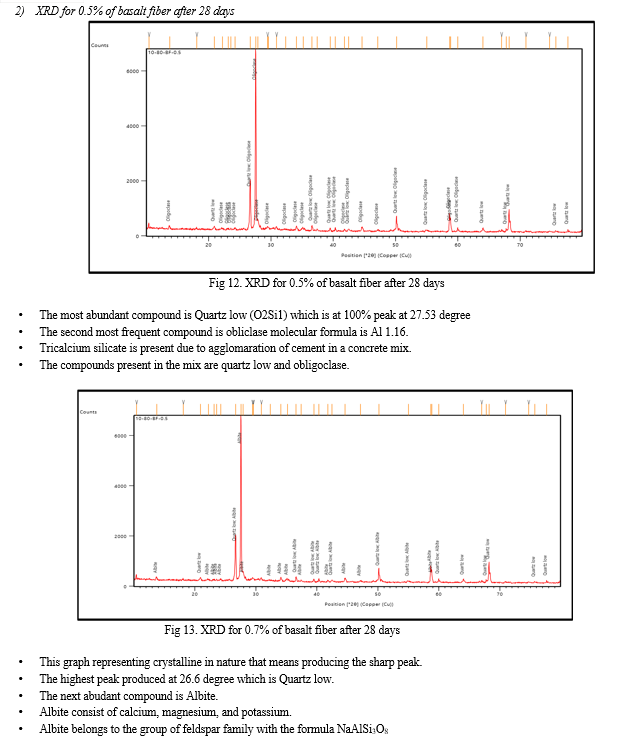

10. X-Ray Diffractometer Test

V. RESULTS AND DISCUSSION

A.  Compressive Strength Test

The Compressive strength of HPC for various percentage of basalt fibre for a curing period of 7 and 28 days was determined and the results are tabulated and the comparison of different combination was shown.

Table 7. Compressive strength of HPC with various percentage of basalt fibre

1. During compression testing the cracks were found near the edges due to less reaction near the edges.
2. The cracks were vertical for all the various percentage of basalt fibers.
3. When compared with the test results addition 0.7% of basalt fibers to concrete gives adequate strength when compared to normal concrete and also other percentage replacement of basalt fibers.
4. When compared with 0% of basalt fiber in concrete and 0.7% of BFC , the compressive strength obtained for 0.7% is 41.1 N/mm2, 15.83% of strength is increased with 0.7% of BFC when compared to 0% BFC.

B. Split Tensile Strength Test

The split tensile strength of HPC for various percentage of basalt fibre for a curing period of 7 and 28 days was determined and the results are tabulated and the comparison of different combination was shown.

Table 8. Split tensile strength of HPC with various percentage of basalt fibre

1. During split tensile testing the cracks were found diagonally.
2. The cracks were vertical for all the various percentage of basalt fibers.
3. When compared with the test results addition 0.7% of basalt fibers to concrete gives adequate strength when compared to normal concrete and also other percentage replacement of basalt fibers.
4. When compared with 0% of basalt fiber in concrete and 0.7% of BFC, the split tensile strength obtained for 0.7% is 3.55 N/mm2, 6.63% of strength is increased with 0.7% of BFC when compared to 0% BFC.

C. Flexural Strength of Concrete

The flexural strength of HPC for various percentage of basalt fibre for a curing period of 7 and 28 days was determined and the results are tabulated and the comparison of different combination was shown.

1. When compared with the test results addition 1% of basalt fibers to concrete gives adequate strength when compared to normal concrete and also other percentage replacement of basalt fibers.
2. The usage of the fibers in concrete shows higher flexural strength, the cracks were formed diagonally.
3. When compared with 0% of basalt fiber in concrete and 0.7% of BFC , the split tensile strength obtained for 1% is 7.15 N/mm2, 38.83% of strength is increased with 1% of BFC when compared to 0% BFC.

 D. Water Permeability

The test results for water permeability for conventional concrete and various percentage of basalt fibers are shown below.

Table 10. Test results for water permeability

The penetration of the chloride ions into the concrete are based on the charge passed columbs, From the test data 0.7% of basalt fiber has low penetration which means that the usage of 0.7% of basalt fiber in HPC concrete is durable.

 F. Sorpitivity

The test results for sorpitivity test are obtained as per the ASTM C-1585-04 are shown below.

VI. ACKNOWLEDGEMENT

The author would like to express the sincere thanks to our project guide Mr. Rachith K, Department of Civil Engineering, Nagarjuna College of Engineering & Technology, Bengaluru and also thankful to the assistance of personnel in the Nagarjuna College of Engineering & Technology, Bengaluru, Karnataka, India.

Conclusion

When compared with the test results of compressive strength and split tensile strength addition 0.7% of basalt fibers to concrete gives adequate strength when compared to normal concrete and also other percentage replacement of basalt fibers. The maximum flexural strength is obtained for 1% of basalt fiber replacement as the addition of fibers with maximum dosage gives good flexure. From the test data we conclude that the depth of water penetration is 13 mm for 0.7 % of basalt fiber in HPC, which is durable when compared to the other samples. The penetration of the chloride ions into the concrete are based on the charge passed columbs, From the test data 0.7% of basalt fiber has low penetration which means that the usage of 0.7% of basalt fiber in HPC concrete is durable. From the test results we conclude that 0.7% of basalt fiber has less water absoption compared to other specimens and 4.76% is under extremely good concrete. Based on the result, the optimum reading was recorded at 0.7% basalt fiber concrete mix. The microstructure of the HPC made with GGBS, silica fume and basalt fiber were analysed by SEM technology for various percentage of 0.5 %, 0.7%,1% and 1.5%. X-Ray Diffraction is used to figure out how crystalline materials are structured.

References

[1] Yong Zheng, Xiande Bao, Zhigang Peng, Qian Feng, Zhen He (2021) “Improving strength and toughness of oil well cement with modified basalt fiber” . Arabian Journal for Science and Engineering [2] Min Li , Zhishen Wu, Fei Gong (2020). “Study on mechanical properties of alkali-resistant basalt fiber reinforced concrete”. Construction and Building Materials 245 (2020) 118424. [3] Jiang Song, Wan-Yang, Gao Li-Jun, Ouyang Jun-Jie, Zeng Jian Yang, Wei-Dong Liu (2019). “Compressive behavior of heat-damaged square concrete prisms confined with basalt fiber-reinforced polymer jackets”. Engineering Structures 242 (2021) 112504. [4] Saurabh Khandelwal, Kyong Yop Rhee. (2019) “Recent advances in basalt-fiber-reinforced composites: Tailoring the fiber-matrix interface”. Composites Part B 192 (2020) 108011. [5] Wael Alnahhal , Omar Aljidda (2018) “Flexural behavior of basalt fiber reinforced concrete beams with recycled concrete coarse aggregates”, Construction and Building Materials 169 (2018) 165–178. [6] Weimin Li , Jinyu Xu (2018) “Mechanical properties of basalt fiber reinforced geopolymeric concrete under impact loading”, Materials Science and Engineering A 505 (2009) 178–186. [7] Eva Vejmelková, Dana Kon?áková, Lenka Scheinherrová, Magdaléna Dolez elová, Martin Keppert, Robert Cerny´ (2018) “High temperature durability of fiber reinforced high alumina cement composites, 6, 263-273. [8] Jongsung Sim, Cheolwoo Park*, Do Young Moon (2017) “Characteristics of basalt fibre as a strengthening material,for concrete structures, Composites: Part B 36 (2005) 504–512. [9] Seong ock Lee, Seung Ho Choi, Soo Han Kwon and Soo jin Park (2014) “Modification of Surface Functionality of Multi Walled Carbon Nanotubes on Fracture Toughness of Basalt Fiber Rienforced Composities. [10] Bo Xiao, Hui Li & Guijun Xian (2011) “Hygrothermal Ageing of Basalt Fiber Reinforced Epoxy Composites: A Review”, CICE 2010 - The 5th International Conference on FRP Composites in Civil Engineering.

Copyright

Copyright © 2022 Deepal V, Rachith K. This is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
